I-17-4 ipleyiti yentsimbi engenanto

Get Latest Price

Min. Myalelo:

1 Piece/Pieces

Qhagamshelana Ngoku

Ingcaciso yeMveliso

Iimpawu zeMveliso

Ukupakisha kunye nokuhanjiswa

Ingcaciso yeMveliso

Iimpawu zeMveliso

Ibhanti: I-Langysixin

Ukupakisha kunye nokuhanjiswa

Ukuthengisa iiyunithi

Piece/Pieces

The file is encrypted. Please fill in the following information to continue accessing it

Ingcaciso yeMveliso

Inkcazo

Intshayelelo

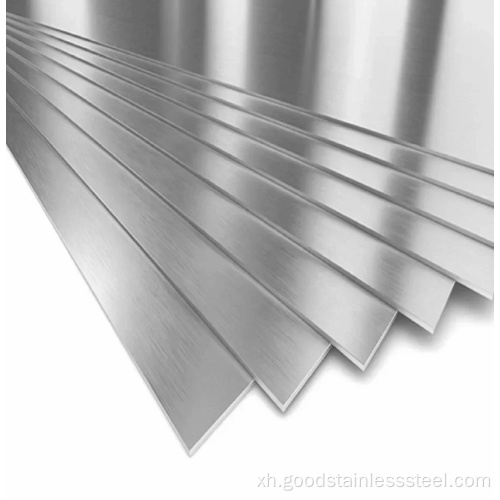

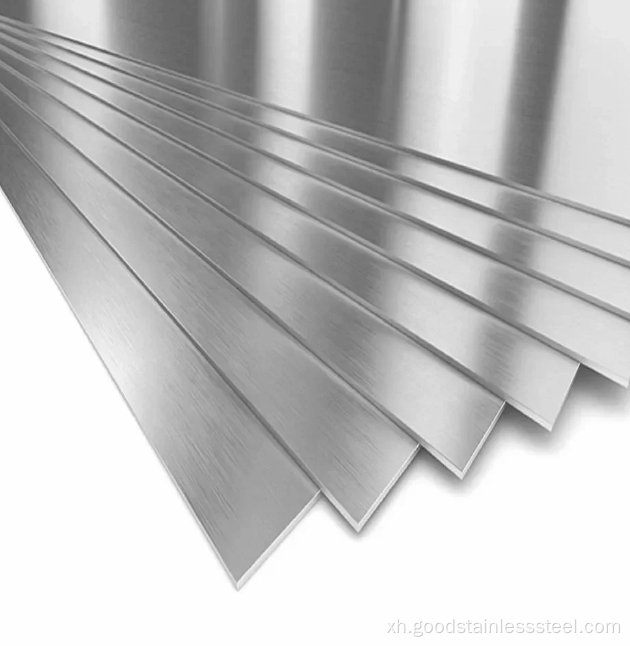

I-17-4 ipleyiti yentsimbi engenasifo sinokungaxhathisi obulungileyo kwimozulu kunye ne-acid ebilisiweyo okanye ityuwa, kunye ne-Surosion kunye ne-SUROSIORY YESIBONELELO SEZOBUCHWEPHESHE NOBUCHULE BENKONZO KAKHULU. Imveliso yethu isetyenziswa ngokubanzi, ihlala isetyenziswa kumaqonga aselunxwemeni, iidesika zehelikopta, amanye amaqonga, ishishini lokutya, ishishini lokutya, ishishini lephepha, njl.

I-3_Meitu_3

D I- TO

Ukwakhiwa kweekhemikhali
Olu luhlu lulandelayo lubonisa ubume bekhemikhali yeBanga le-17--4.

Element	Content (%)
Iron, Fe	73
Chromium, Cr	15.0 - 17.5
Nickel, Ni	3.0 - 5.0
Copper, Cu	3.0 - 5.0
Manganese, Mn	1.0
Silicon, Si	1.0
Tantalum, Ta	0.45
Niobium, Nb (Columbium, Cb)	0.45
Nb + Ta	0.15 - 0.45
Carbon, C	0.070
Phosphorous, P	0.040
Sulfur, S	0.030

Iipropathi zomzimba
Iipropathi zomzimba zeBanga le-17- - Intsimbi engenasicazulo linikiwe kwitafile elandelayo.

Properties	Metric	Imperial
Density	7.75 g/cm3	0.280 lb/in³

Iipropathi zoomatshini
Iipropathi zoomatshini bokudityaniswa kwe-17-4 intsimbi engenanto iboniswa kwitafile elandelayo.

Properties	Metric	Imperial
Shear modulus	77.4 GPa	11200 ksi
Elastic modulus	190-210 GPa	27557-30458 ksi
Poisson's ratio	0.27-0.30	0.27-0.30
Hardness, Brinell	352	352
Hardness, Knoop (estimated from Rockwell C)	363	363
Hardness, Rockwell C	36	36
Hardness, Vickers (estimated from Rockwell C)	349	349

Iipropathi ze-thermal
Le theyibhile ilandelayo ichaza iipropathi ze-shirmal yebanga le-17-4 lentsimbi engenasicanza.

Properties	Metric	Imperial
Thermal expansion co-efficient (@ 21-93°C/69.8-199°F)	10.8 µm/m°C	6.00 µin/in°F
Thermal conductivity ( for condition H 900 at 149ºC. 22.6 W/mK for H 900 at 482ºC)	17.9 W/mK	124 BTU in/hr.ft².°F

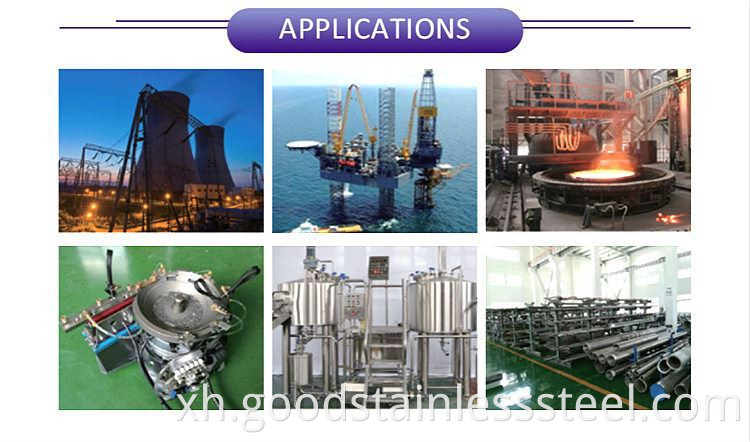

Intsimbi ye-17-4 isetyenziswe kwezi zicelo zilandelayo:
I-nuclear ye-nuclear
Iinqwelomoya kunye nee-turbines zenqwelomoya
Intsimi yeoyile
IZIQULATHO ZENKQUBO YENKQUBO
Iphepha lephepha

Product Name	17-4 stainless steel plate
Standard	JIS,ASTM,AISI,SUS,UNS,DIN,EN etc
Technique	Cold Rolled,Hot Rolled
Thickness	0.01-200mm
Width	10-2500mm
Length	0.5m-10m
Surface	1D,No.1,2B,No.4,BA,8K,satin,hairline,brush,mirror etc.

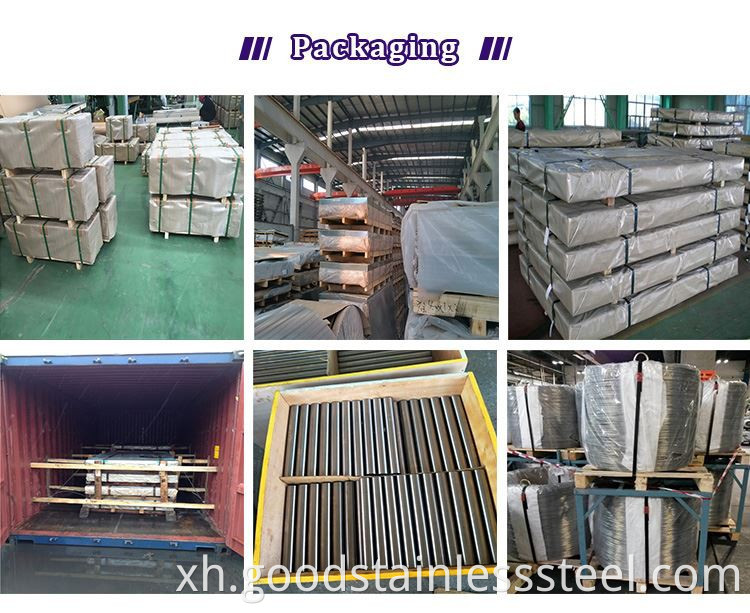

Iinkcukacha zokupakisha

Izibonelelo

1. Inkonzo ye-24 ye-Intanethi

Nceda uzive ukhululekile ukunxibelelana nathi. Iqela lethu lokuthengisa liza kukubonelela ngeeyure ezingama-24 ukuthengisa ngaphambili,

2. Ixabiso lokhuphiswano

Zonke iimveliso zethu zinikezelwa ngqo kumzi-mveliso. Ke ixabiso likhuphisane kakhulu.

3. Umhambisi

Ukuhanjiswa ngokukhawuleza kunye nenkonzo yobungcali emva kokuthengisa yeyona nto iphambili kuthi, esenza ukuba sibe liqabane lakho elithembekileyo.

Kutheni usinyula?

Sityala imali kwitekhnoloji yakutshanje kunye noomatshini ukuvelisa iimveliso ezisemgangathweni eziphezulu zentsimbi.
Yintanda-bulumko yethu yeshishini kunye nenjongo yokuzama ukuhlangabezana neemfuno zabathengi, kwaye ibuyise wonke umsebenzi ngenkqubo yokwanda kunye nexabiso lenkampani.
Iimveliso zethu zentsimbi ezingalunganga zifakwe kakuhle kwizothutho ezikhuselekileyo nezikhuselekileyo.
Iplate yethu ye-17-4 ifunyenwe kakuhle imakethi ngenxa yokuthengisa ngaphezulu, uluhlu olubanzi lwezicelo kunye nexabiso eliphezulu.
Iimveliso zethu zentsimbi ezingalunganga zinobomi obude kwaye zifuna ulondolozo oluncinci.
Ngenkqubo yolawulo lwanamhlanje, udumo oluthembekileyo kunye namandla oqinileyo obuchwephesha, inkampani yethu ifikelele kwinqanaba elitsha.
Umzi-mveliso wethu uvelisa iimveliso zentsimbi ezingenasitali zobungakanani obahlukeneyo kunye neenkcazo.
Siphumelele ukuthembana kunye nokwamkelwa kwabathengi bethu ngenzondelelo epheleleyo, ubuchule obukhulisayo, umgangatho ophezulu kunye nexesha lokuthengisa.
Sibeka phambili umgangatho weemveliso zethu zentsimbi ezingenasitali kunye nolwaneliseko lwabathengi bethu.
Inkampani yethu ithatha i-inzululwazi kunye netekhnoloji njengento yokuqala yokuqala kwaye ithathele ingqalelo kulwakhiwo lweqela le-R & D, eliphucula ngokukhawuleza ukuchaneka kunye nokuzinza kwemigangatho yeemveliso zethu.
